190lm/W High Efficiency IP65 30w 40w 50w LED Module Lighting Source For Outdoor Lighting
Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90°,150x65° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >165LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Product Description:
Dimension:
Application Cases:
Installation instructions:
1. Switch off the power supply
2. Make the stadium light on the Bracket
3. Electrical wiring connection
4. Tight the screws
5. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
Specification:
| CCT(K) | Wattage(W) | CRI(Ra) | Voltage DC (V) | Current DC (mA) | LuminousEfficiency (Lm/W) | Luminousflux (lm) |
| 2700-3200 (WW) | 30 | ≥70 | 44-52 | 670 | 160 | 4800 |
| 40 | ≥70 | 44-52 | 900 | 155 | 6200 |
| 45 | ≥70 | 44-52 | 1000 | 151 | 6800 |
| 4000-4500 (NW) | 30 | ≥70 | 44-52 | 670 | 167 | 5000 |
| 40 | ≥70 | 44-52 | 900 | 163 | 6500 |
| 45 | ≥70 | 44-52 | 1000 | 160 | 7200 |
| 5000-6000 (PW) | 30 | ≥70 | 44-52 | 670 | 170 | 5100 |
| 40 | ≥70 | 44-52 | 900 | 166 | 6650 |
| 45 | ≥70 | 44-52 | 1000 | 163 | 7350 |
| IP Rating | IP66 |
| Product Dimension | 300*78*32MM |
| Net weight | 0.63KG |
| Light Body& Lampshade | Aluminum Alloy and PC |
| Working Life | 50000H |
| Working Temperature | -30℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +75℃ |
| Working Humidity | 10%~90% |
| Beam Angle | 150*65° |
Package info:
Inner box Size: 648mm×325mm×270mm 25pcs 20KG

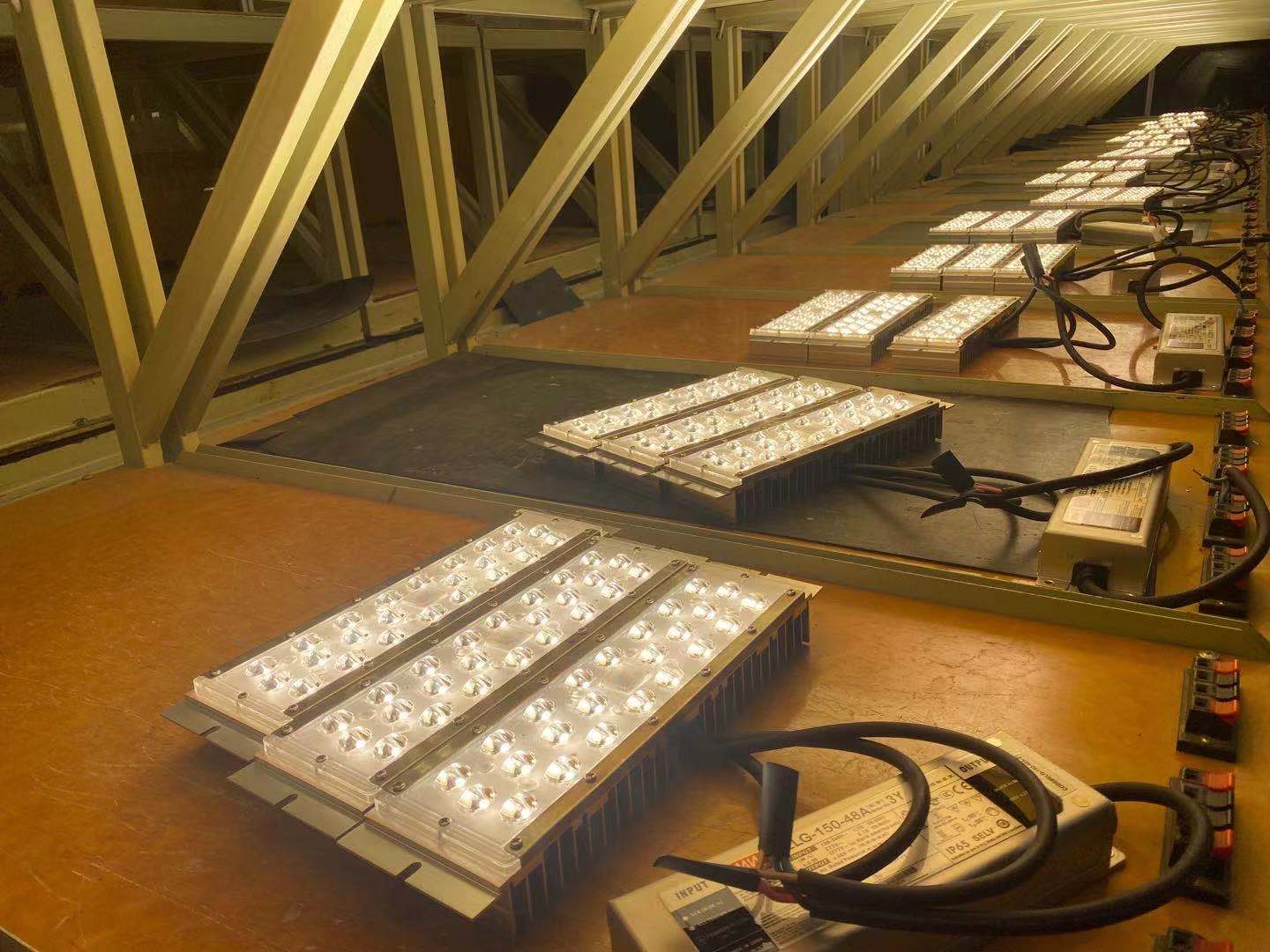

Actual pictures:
